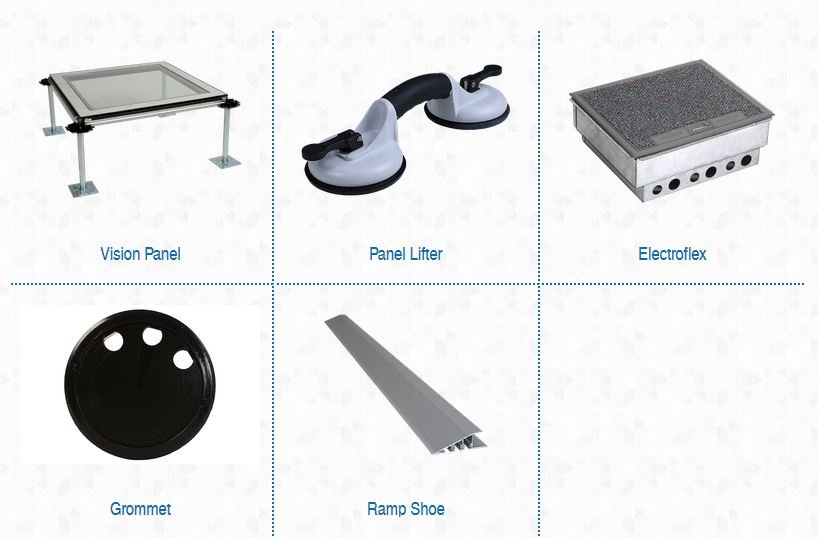

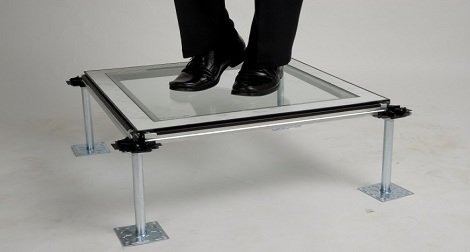

Vision Panel is constructed with an overall dimension of 600x600mm. The viewing area is made of toughened glass available in sizes of 300x300mm, 450x450mm and 500x500mm. The Vision Panel can be used for viewing critical points that need frequent monitoring and is designed for normal walking load only.

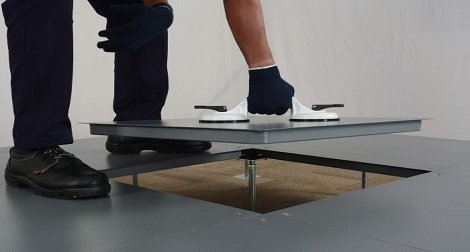

Unitile’s double cup suction panel lifter(s) allows panels to be lifted quickly, easily and safely without damaging any of the adjoining access floor panels. Not only are they more efficient and safer than using improper tools (screwdrivers, knives), using them will also extend the life of your raised floor. Unitile’s panel lifters are designed for use on all access floor panels which includes 'bare' and 'high pressure laminate' panel surfaces.

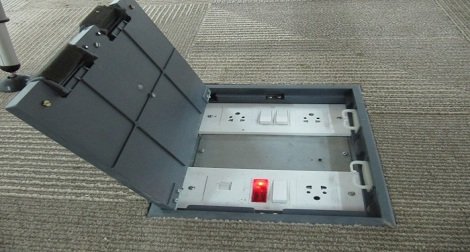

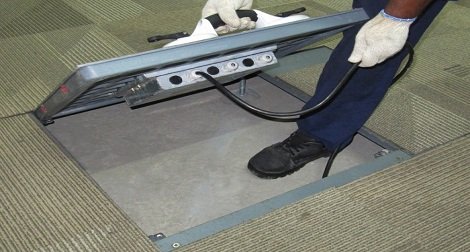

Electroflex is a concealed electrical monument box which has a depth of 70mm to accommodate plug-in facility and 35mm depth to accommodate power, voice and data (PVD) accessories. The hinge lid is constructed with pre-coated galvanized steel and has recessed grey ABS trim to accommodate carpet tiles or any other factory bonded finish to match the adjacent floor finish.

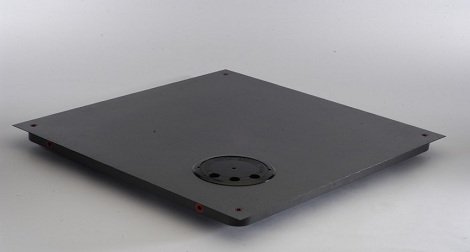

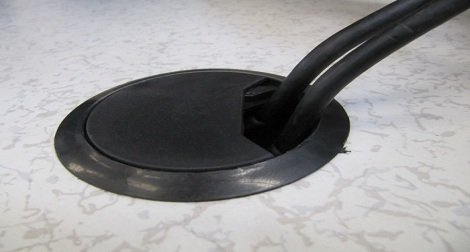

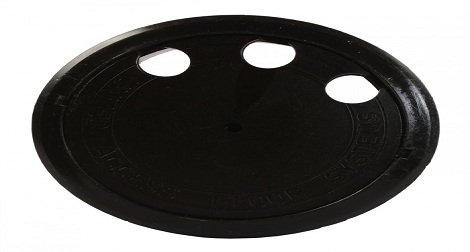

Desk grommets are a simple and inexpensive way to keep wires from cluttering your work surface. They are perfect for if you want to run your cables through your desk or through a wall. Simply use a hole saw to make a hole in the desk / wall, then insert the grommet. Remove the cap so you can insert your cables, then put the cap back in place.

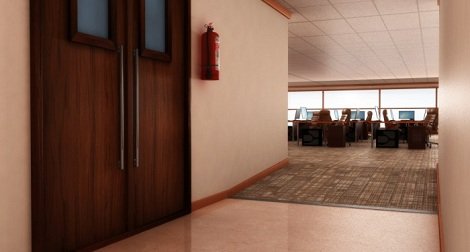

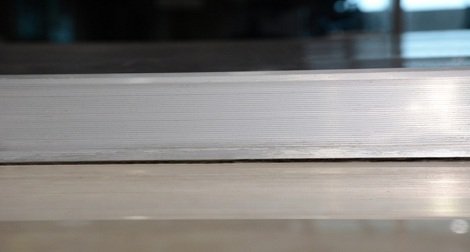

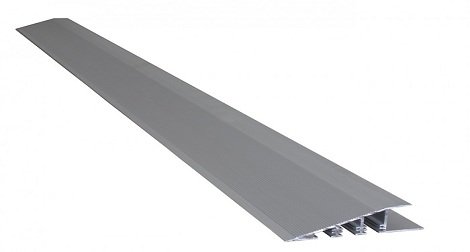

The Unitile Ramp Shoe is designed to provide a smooth transition between the raised access floor tiles and the concrete floor. The system is generally used in applications, which require heavy footfall movement & rolling of equipment’s into the facility using trolleys. Example of such spaces includes commercial offices & data center facilities. The product is made up of heavy-duty anodized aluminum. The Ramp Shoe features a trapezoid anchoring leg, which is firmly secured to the concrete floor. The system is securely fastened to the concrete floor at regular intervals with the use of fasteners. The ramp provides a sloped transition surface that terminates at the height of the access floor tile edge. The profile protects tile edges to eliminate trip hazards and ensures easy access of trolleys. The ramp shoe is a full 15 inches wide which meets ADA 1:12 requirements for ramped surfaces. Protects the ramp from equipment damage and makes an excellent seamless transition between two surfaces.
